Materials
 Housing (Outer sleeve) :Brass,machined CuZn38Pb2
 Clip (contact) (3finger) :Beryllium Copper,heat treated
 Plating Pin (outer sleeve):Tin plated:2u"m/80u" nickel,5u"m /200u"Tin-leda
 Gold plated:2u"m/80u" "nickel 0.25um/10u"full gold
 Plating Clip (contact) :2u"m/80u" " nickel full gold
 Insulator body :FR-4 or LCP. UL94V-O

Electrical
 Maximum current :1A
 Contact resistance per contact : <4mΩ Contact Max;
 Insulation resistance : ≧10000MΩ at 500VAC
 Rated voltage : 100VRMS /150VDC
 Air and creepage distance : 0.6mm
 Capacitance: 0.3pF max

Mechanical
 Average insertion force with steel pin of φ0.43mm/.017":≤45g
 Average with drawal force with steel pin of φ0.43mm/.017":≧15g
 Mechanical life cycle :min.200
 Operating temperatures :Gold plated: -55℃ to +125℃，-67℉ to +257℉(Continuous)
 Tin plated: -40℃ to +105℃
 Soldering temperature :+260℃,10s max,+500OF,10s max

Application
 1.Low insertion force socket.3 fingers contacts
 2.Closed end construction for 100% anti-wicking of solder
 3.Pitch 1.27mm&2.54mm available
 4.Low Profile type ,insulator 0.8mm available

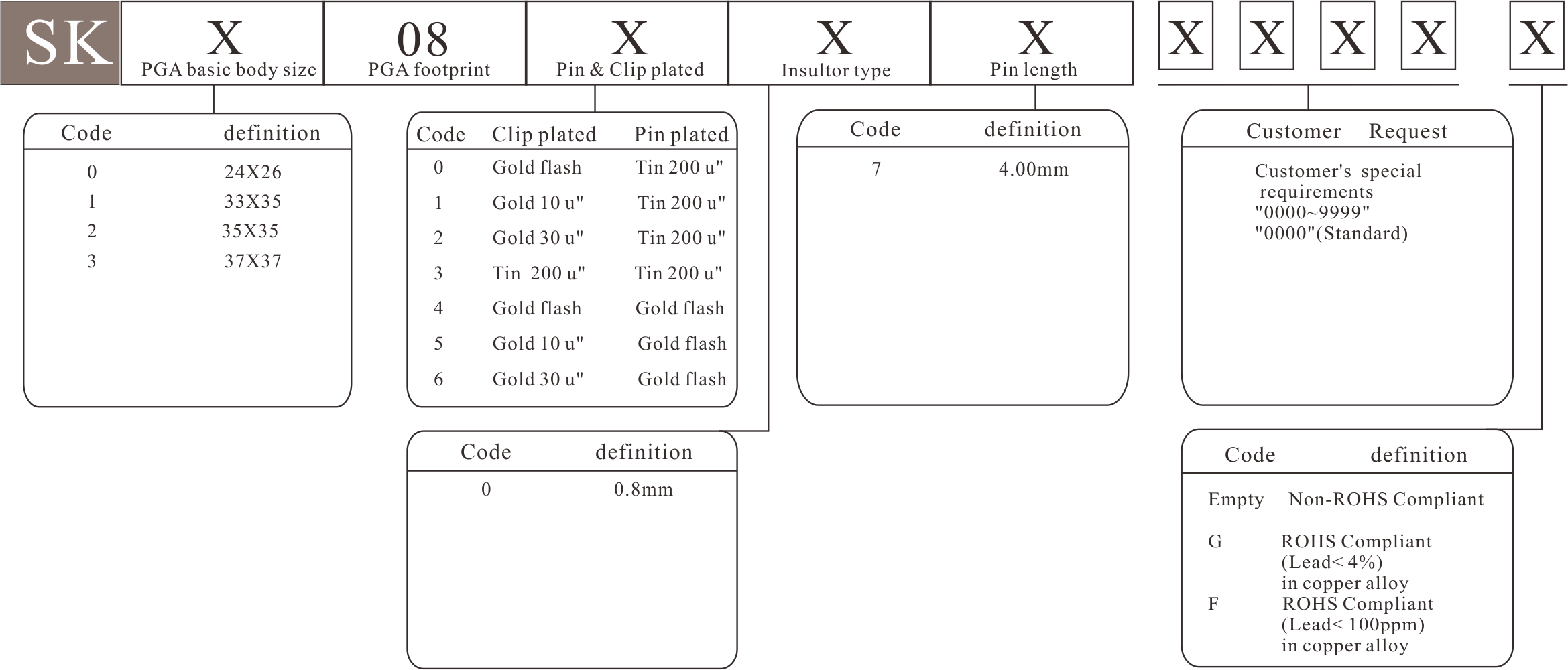

产品料号编码原则--How to order
