Materials
 Pin :Brass,Screw Machined
 Outer Sleeve :CuZn38pb2
 Inner Clip :Beryllium Copper,heat treated (Contact 6-finger)
 Plating(Sleeve) :Tin plated over Brass & Nickel.
 Or 3u" Gold Plated over Brass
 Plating(Clip) :Gold Flash plated over Nickel
 Special Plating :see table on"Pin&Clip Plated Code"
 Insulator body :FR-4 or PPS. UL94V-O

Electrical
 Maximum current :1A
 Contact resistance per contact :<4mΩ;
 Insulation resistance : ≧10000MΩ at 500VAC
 Rated voltage : 100VRMS /150VDC
 Air and creepage distance : 0.6mm
 Capacitance: 0.3pF max

Mechanical
 Average insertion force with steel pin of φ0.38mm/.015" :< 60g
 Average withdrawal force with steel pin of φ0.38mm/.015": ≧15g
 Mechanical life cycle : 200 time /minimum
 Operating temperatures (continuous):
 Gold plated : -55℃ to +125℃
 Tin plated : -40℃ to +105℃

 Features
 1.Low insertion force socket with 6fingers contacts
 2.Closed end construction for 100% anti-wicking of solder

Application
 Environmental data
 Solderability (IEC 60068-2-20. Ta) :235℃ , 2s
 Resistance to soldering heat (IEC 60068-2-20. Tb) :
 -Through hole mount components :260℃ , 10s

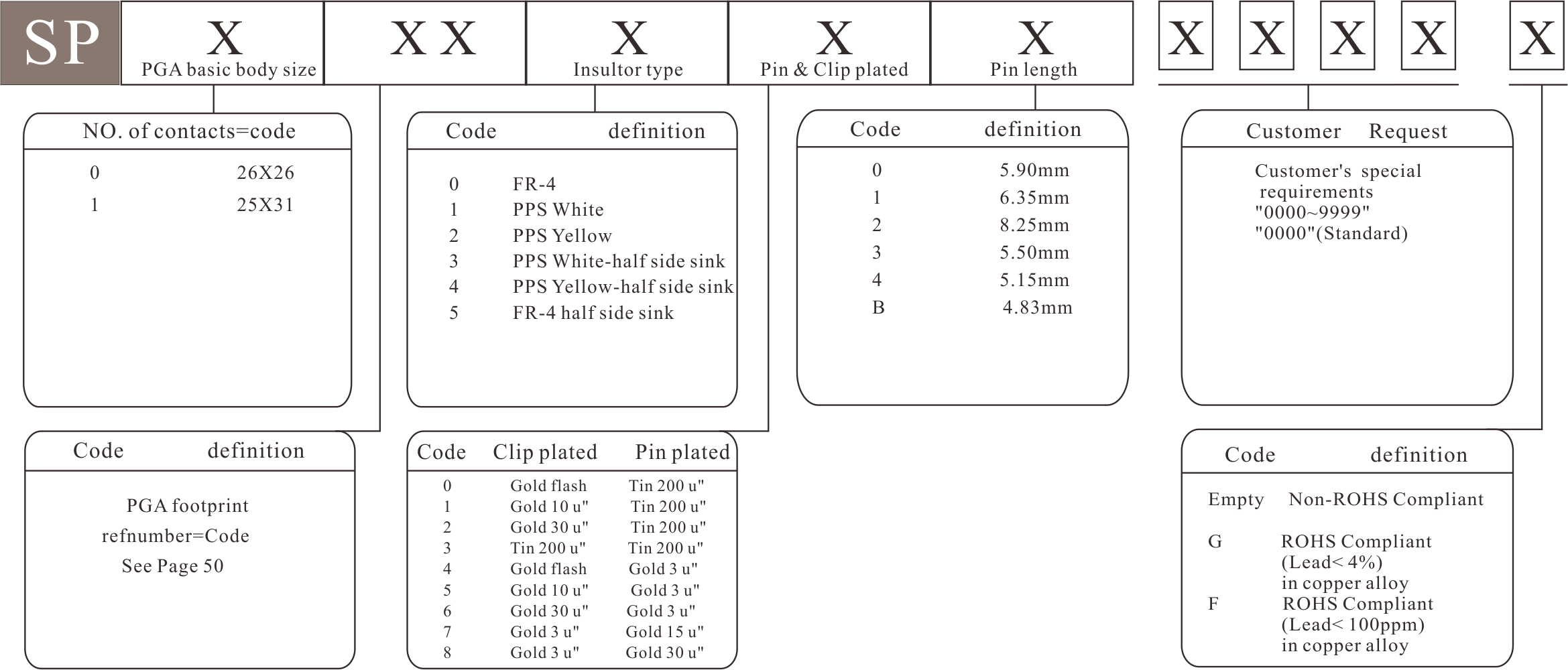

产品料号编码原则--How to order
