Materials
   Pin :Brass, CuZn38pb2
   Plating(Sleeve) :Tin plated over Brass & Nickel.
   Or 3u" Gold Plated over Brass
   Special Plating :see table on"Pin&Clip Plated Code"
   Insulator body :FR-4 or PPS, UL94V-O

Electrical
   Maximum current :1A
   Insulation resistance : ≧10000MΩ at 500VAC
   Rated voltage : 100VRMS /150VDC
   Air and creepage distance : 0.6mm
   Capacitance: 0.3pF max

Mechanical
   Operating temperatures (continuous):
   Gold plated : -55℃ to +125℃
   Tin plated : -40℃ to +105℃

Environmental data

   Solderability (IEC 60068-2-20. Ta) :235℃, 2s
   Resistance to soldering heat (IEC 60068-2-20. Tb) :
   -Through hole mount components :260℃, 10s

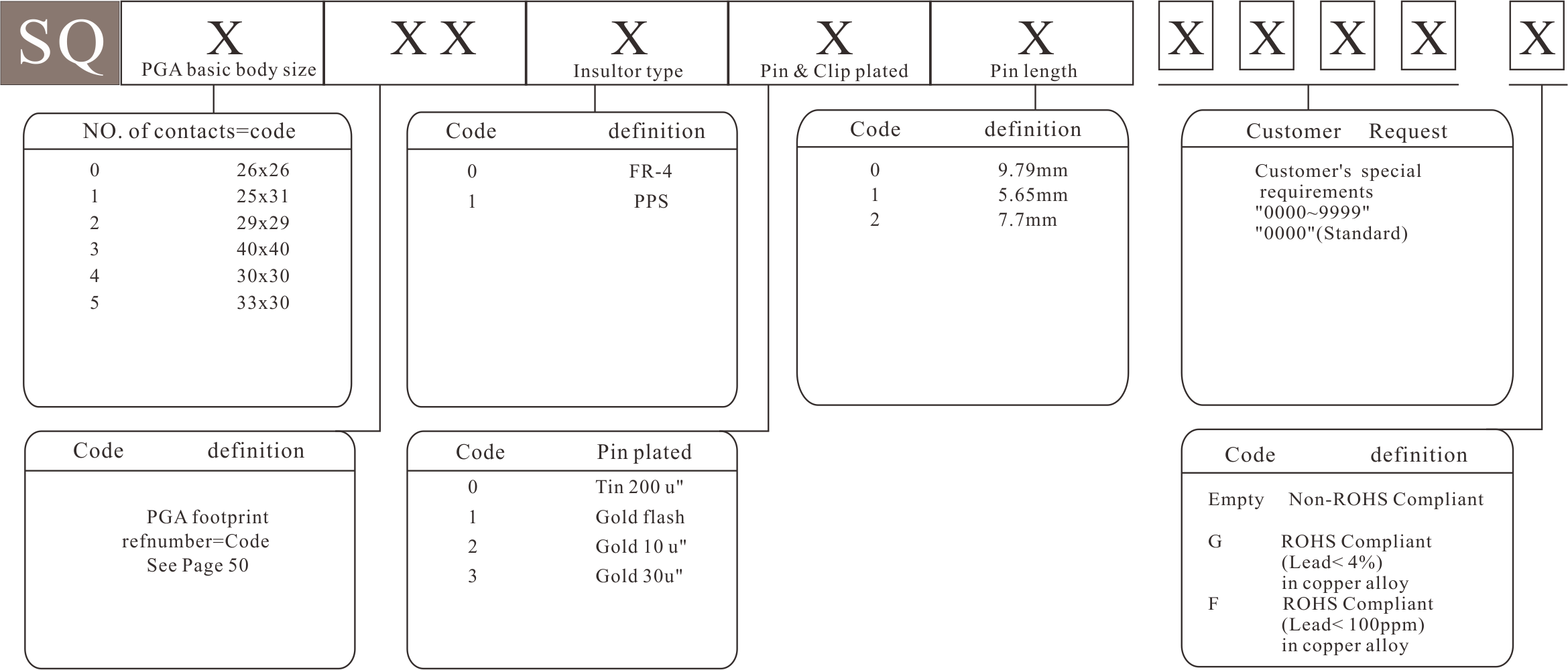

产品料号编码原则--How to order
