OG
| Product description | |
|---|---|
| : | OG |
| : | / |
| : | / |
| : | OG6000x00000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials

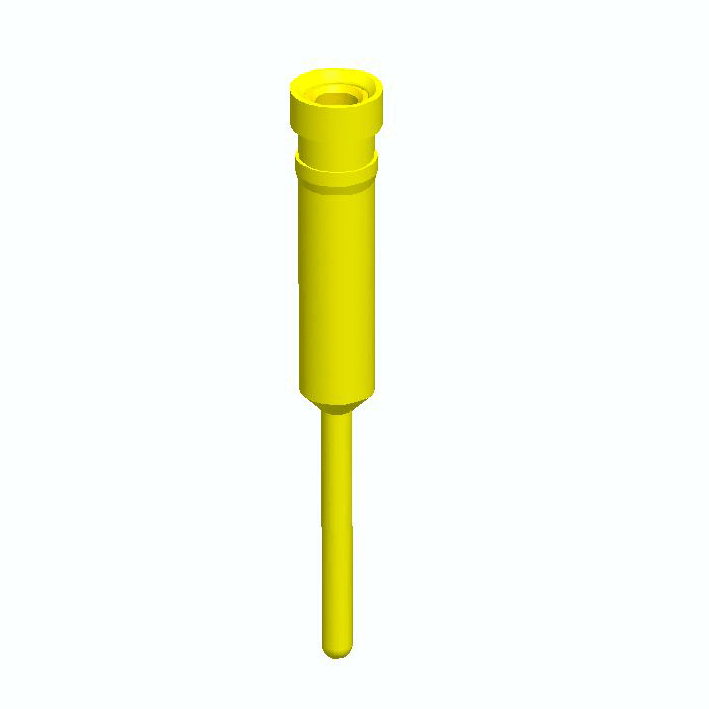

Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Clip(contact 6 finger): Beryllium copper,heat treated or PHBZ Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin Gold plated : 2um/80u"nickel,Full gold flash Plating(contact) : 2um/80u"nickel,gold or Tin plating(See TABLE)
Electrical
Current rating : 3 Amps/contact max. Current resistance : <4mΩ /contact.
Mechanical
Average insertion force with steel pin of φ0.66mm or SQ 0.64mm: 6-finger≦140g Average withdrawal force with steel pin of φ0.66mm or SQ 0.64mm: 6-finger≧25g Mechanical life: min.200

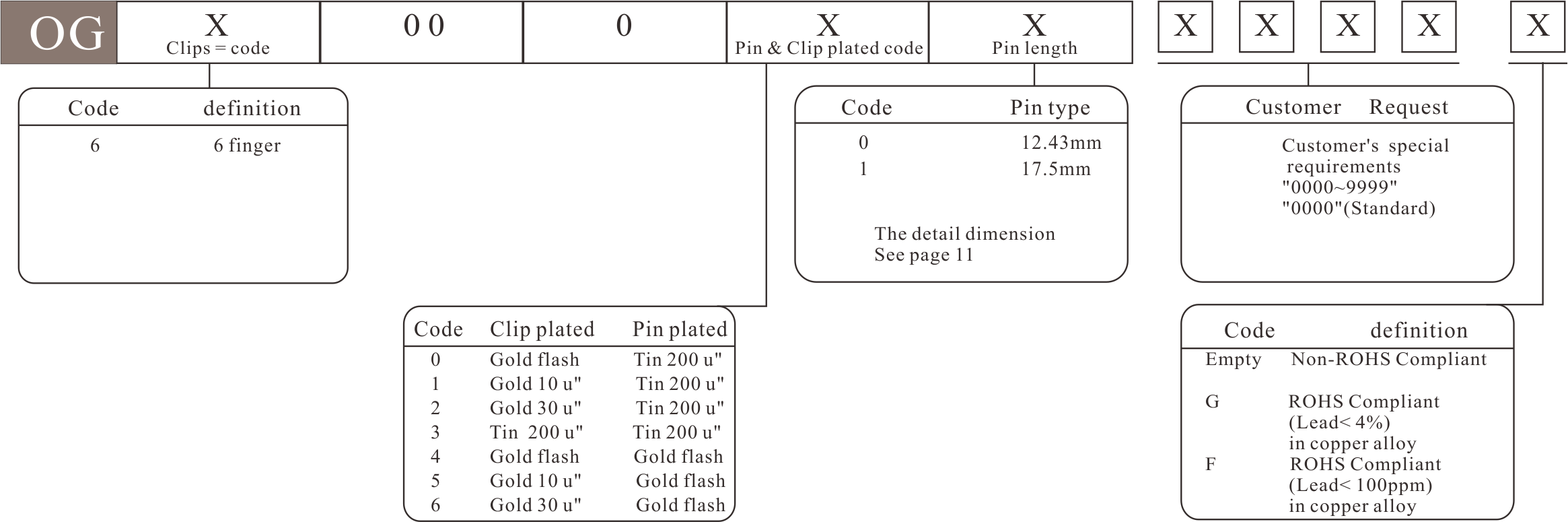

产品料号编码原则--How to order
