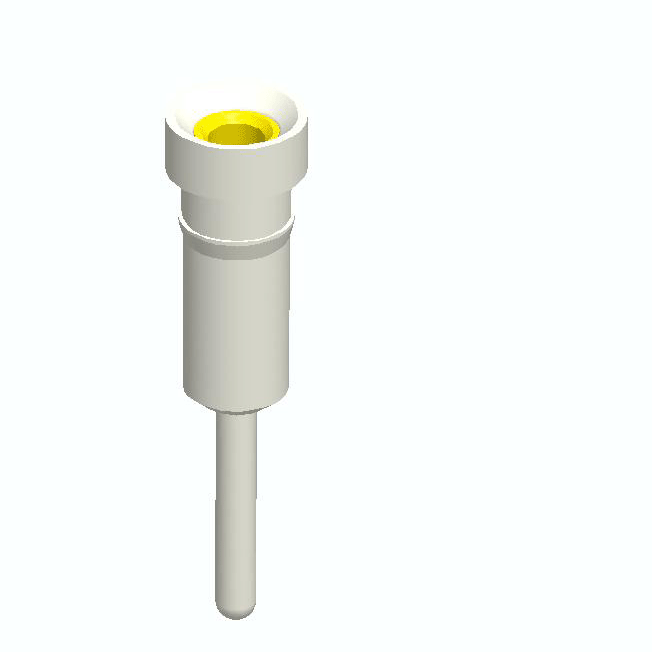

O2
| Product description | |
|---|---|
| : | O2 |
| : | / |
| : | / |
| : | O24000x00000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Clip(contact 4/6 finger): Beryllium copper,heat treated or PHBZ
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated : 2um/80u"nickel,Full gold flash
Plating(contact) : 2um/80u"nickel,gold or Tin plating(See TABLE)
Electrical
Current rating : 3 Amps/contact max.
Current resistance : <4mΩ /contact.
Mechanical
Average insertion force with steel pin of φ0.43mm/0.017":
4-finger≦250g.6-finger≦80g
Average withdrawal force with steel pin of φ0.43mm/0.017":
4-finger≧50g.6-finger≧15g
Mechanical life: min.200

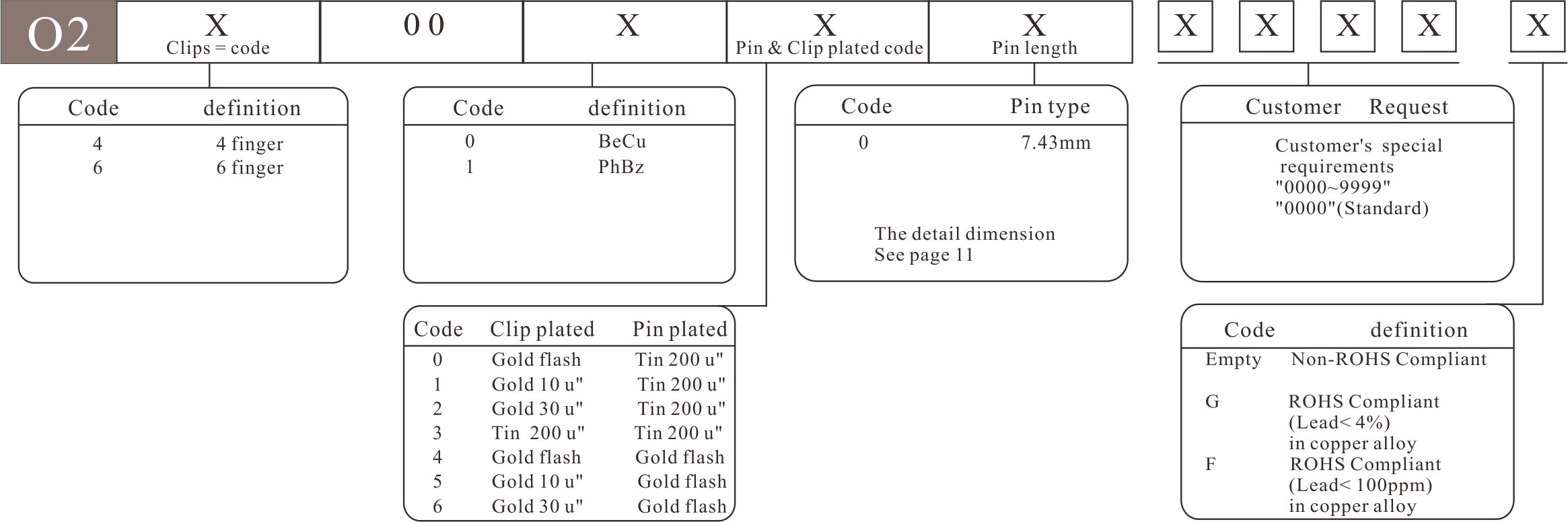

产品料号编码原则--How to order
