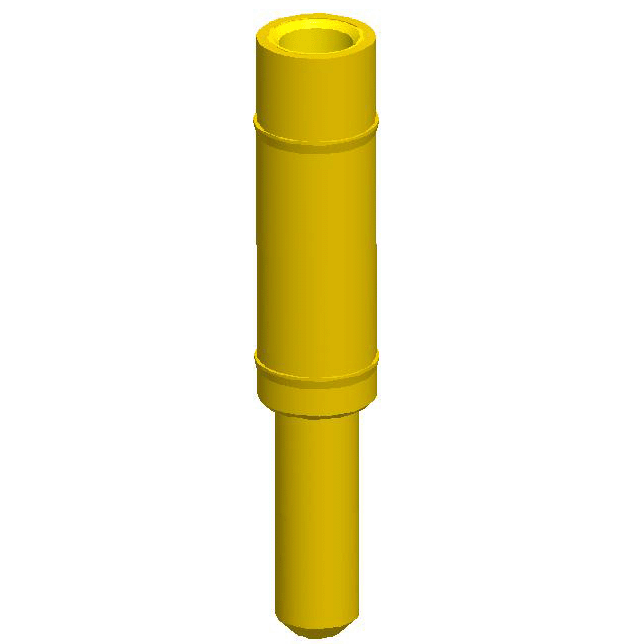

OI
| Product description | |
|---|---|
| : | OI |
| : | / |
| : | / |
| : | OI4000x00000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Clip(contact 4 finger): Beryllium copper,heat treated
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated : 2um/80u"nickel,Full gold flash
Plating(contact) : 2um/80u"nickel,gold or Tin plating(See TABLE)
Electrical
Current rating : 3 Amps/contact max.
Current resistance : <4mΩ /contact.
Mechanical
Average insertion force with steel pin of φ1.05mm/0.041": 4-finger≦350g
Average withdrawal force with steel pin of φ1.05mm/0.041": 4-finger≧55g
Mechanical life: min.200

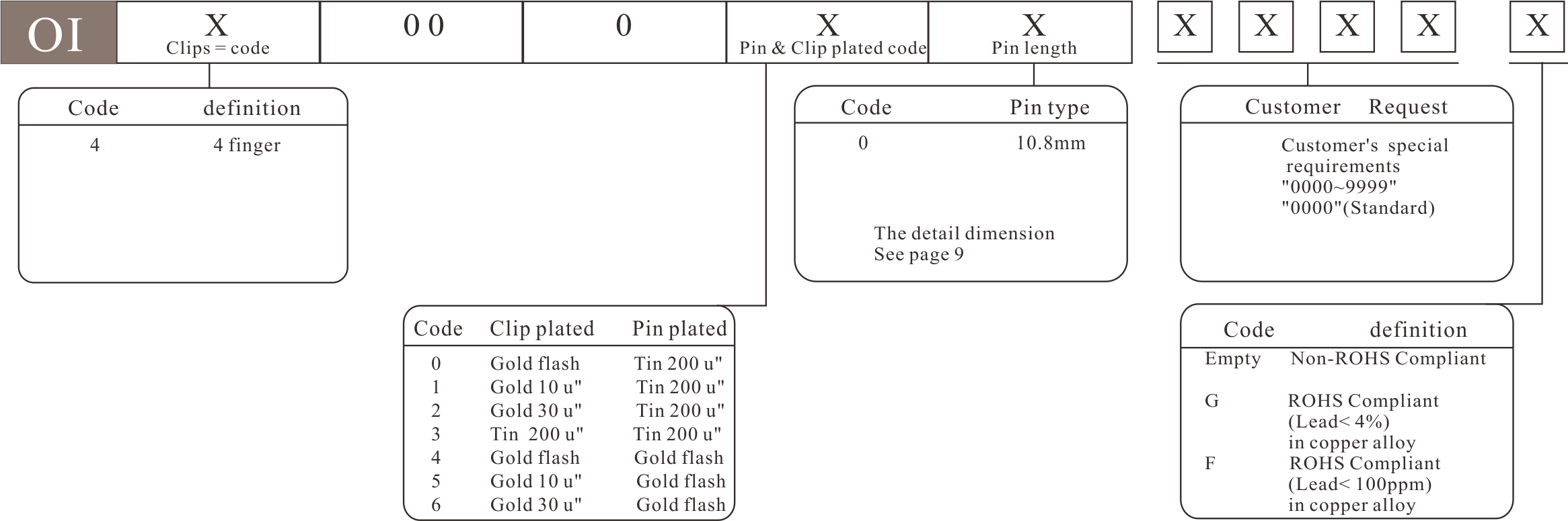

产品料号编码原则--How to order
