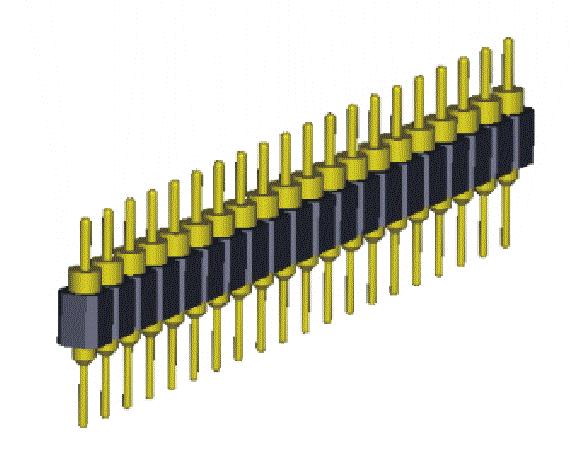

SB Single row
| Product description | |
|---|---|
| : | SB Single row |
| : | 2.54 |
| : | 1-64 |
| : | SBxx00x00000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Plating : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated: 2um/80u"nickel,full gold
Insulator body(black): Glass filled polyester UL94V-0
Electrical
Current rating : 3 Amps/contact max.
Insulation resistance : ≧10000MΩ at 500VAC
Rated voltage : 100VRMS / 150VDC
Mechanical
Operating temperature : Gold plated: -55℃ to +125℃
(Continuous) -67℉ to +257℉
Tin plated: -40℃ to +105℃
Application
1.The male header contacts are designed for "Sandwich application" because
The pin of φ0.5mm/0.050" can be plugged into a standard IC-contact.
2.3 different heights are available.
3.Low profile type.
4.Side and end stackable.
5.Twist free construction.
Environmental data
Solderability (IEC 60068-2-54. Ta) :245℃±3℃, 5s
Resistance to soldering heat (IEC 60068-2-20. Tb) :
-Through hole mount components :260℃, 10s

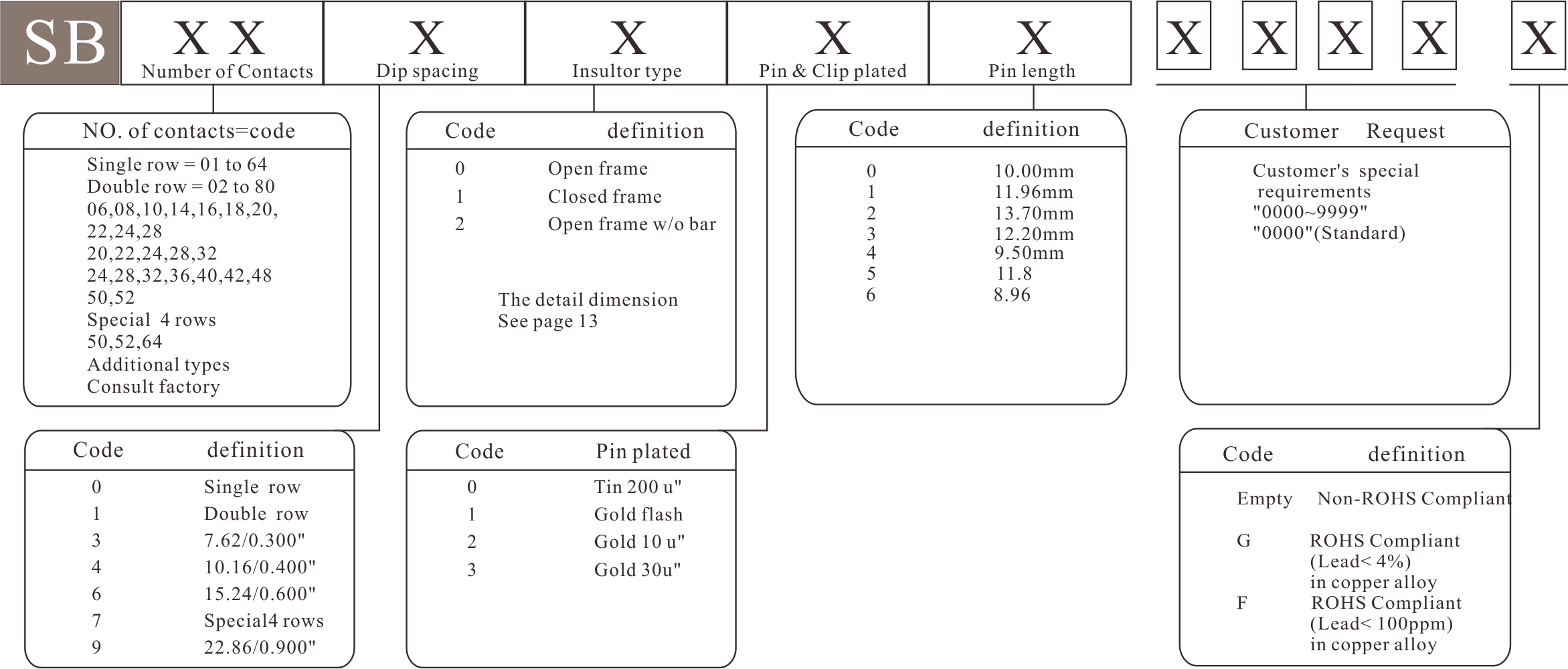

产品料号编码原则--How to order
