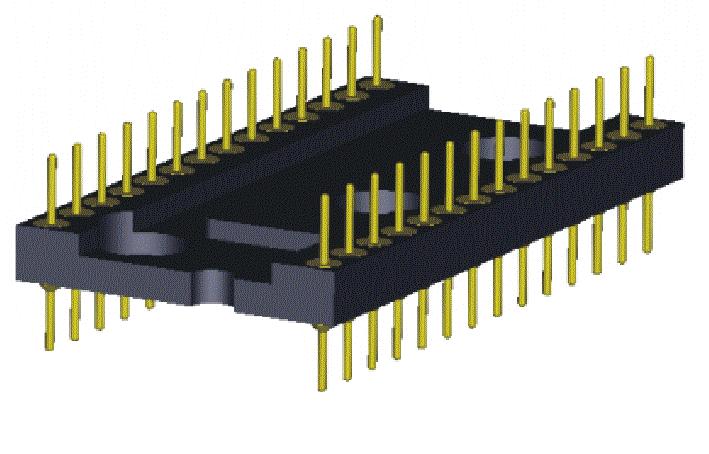

SB Closed frame
| Product description | |
|---|---|
| : | SB Closed frame |
| : | 2.54 |
| : | / |
| : | SBxxx1x00000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Plating : Tin plated : 2um/80u"nickel,5um/200u"Tin Gold plated: 2um/80u"nickel,full gold Insulator body(black): Glass filled polyester UL94V-0
Electrical
Current rating : 3 Amps/contact max. Insulation resistance : ≧10000MΩ at 500VAC Rated voltage : 100VRMS / 150VDC Mechanical Mechanical
Operating temperature : Gold plated: -55℃ to +125℃ (Continuous) -67℉ to +257℉ Tin plated: -40℃ to +105℃
Application
1.The male header contacts are designed for "Sandwich application" because The pin of φ0.5mm/0.050" can be plugged into a standard IC-contact. 2.3 different heights are available. 3.Low profile type. 4.Side and end stackable. 5.Twist free construction.
Environmental data
Solderability (IEC 60068-2-54. Ta) :245℃±3℃, 5s
Resistance to soldering heat (IEC 60068-2-20. Tb) :
-Through hole mount components :260℃, 10s

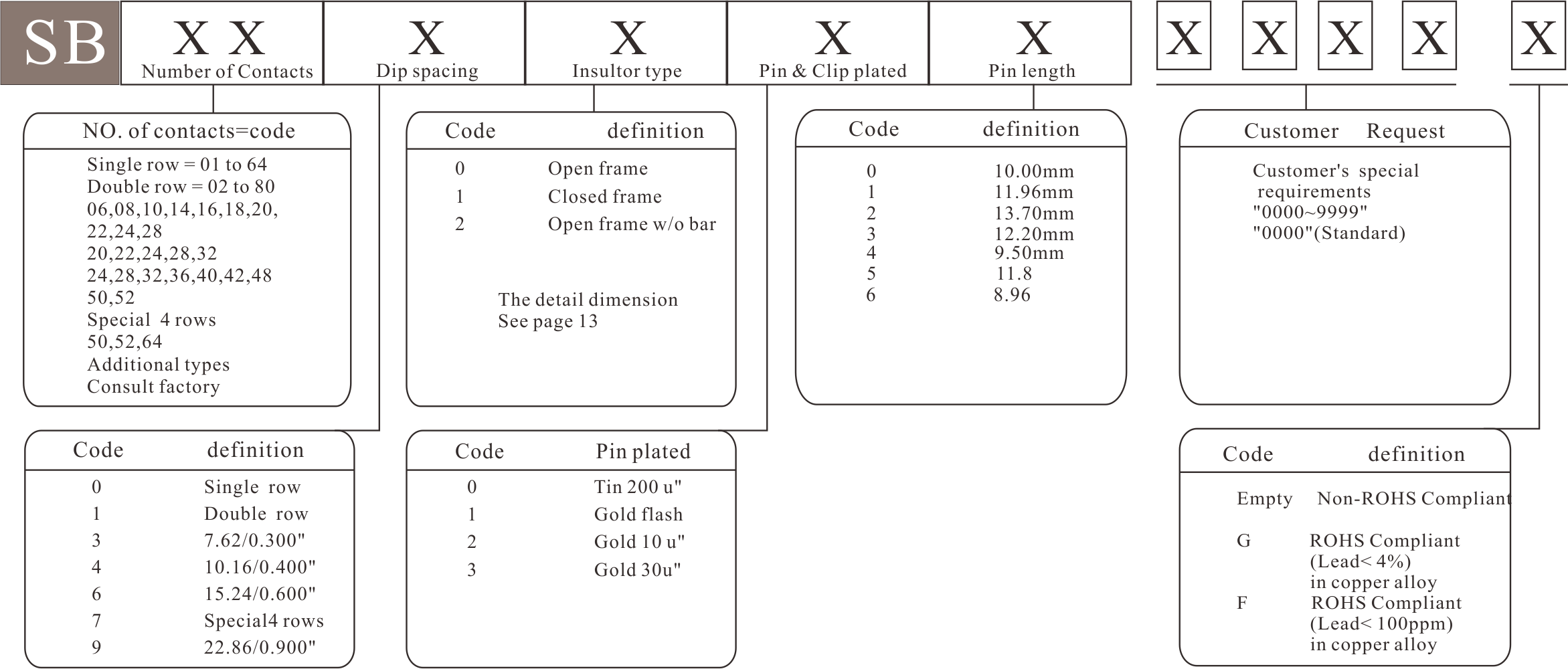

产品料号编码原则--How to order
