Materials
 Pin (outer sleeve) : Brass,machined, CuZn38Pb2
 Clip(contact 4 finger): Beryllium copper,heat treated
 Plating(outer sleeve) : Tin plated : 2u"m/80u"nickel,5um/200u"Tin
 Gold plated: 2um/80u"nickel,Full gold
 Plating(contact) : 2um/80u"nickel,gold or Tin plating
 Insulator body(housing) : Polyamide (Glass filled) UL94V-0

Electrical
 Current rating : 3 Amps/contact max.
 Current resistance : ≦4mΩ /contact.
 Insulation resistance : ≧1000MΩ at 500VDC
 Rate voltage : 100VRMS / 150vac/

Mechanical
 Operating temperature : Gold plated: -55℃ to +125℃ (Continuous)
 Tin plated : -40℃ to +105℃
 Average insertion force : <250g
 With stell pin of φ0.43mm/0.017"
 Average withdrawa forcel : >50g with steel pin of φ0.43mm/0.017"
 Mechanical life : min.200

Environmental date
 Solderability: (IEC 60068-2-54 Ta) 235℃, 2s
 Resistance to soldering heat :(IEC 60068-2-20 Tb)
 -Through hole mount components :260℃, 10s

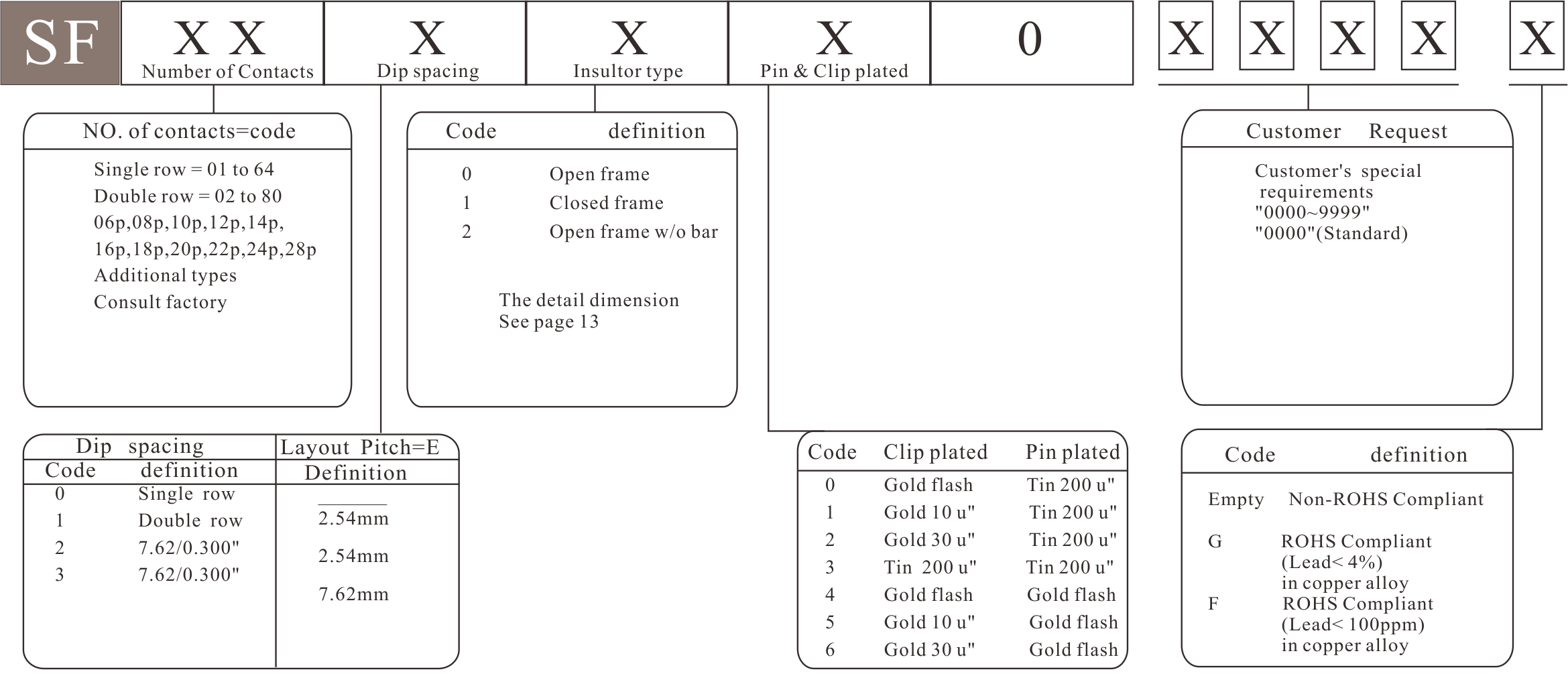

产品料号编码原则--How to order
