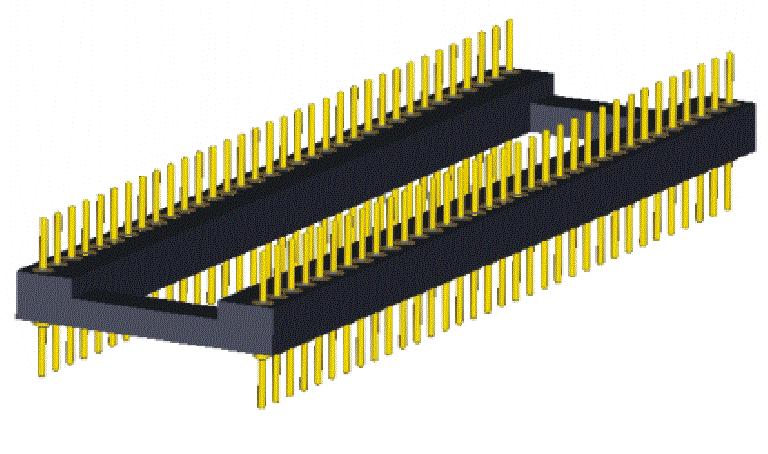

SG W/O bar
| Product description | |
|---|---|
| : | SG W/O bar |
| : | 1.778 |
| : | / |
| : | SG6472x00000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin Gold plated: 2um/80u"nickel,Full gold flash Insulator body(housing) : Glass filled thermoplastic polyester UL94V-0
Electrical
Current rating : 3 Amps/contact max. Insulation resistance : ≧ 10000MΩ at 500VAC Rated voltage : 100VRMS /150VDC
Mechanical
Operating temperature : Gold plated: -55℃ to +125℃
(Continuous) -67℉ to +105℉
Tin plated: -40℃ to +105℃
Environmental data
Solderability (IEC 60068-2-20. Ta) :235℃ ,2s
Resistance to soldering heat (IEC 60068-2-20. Tb) :
-Through hole mount components :260℃, 10s

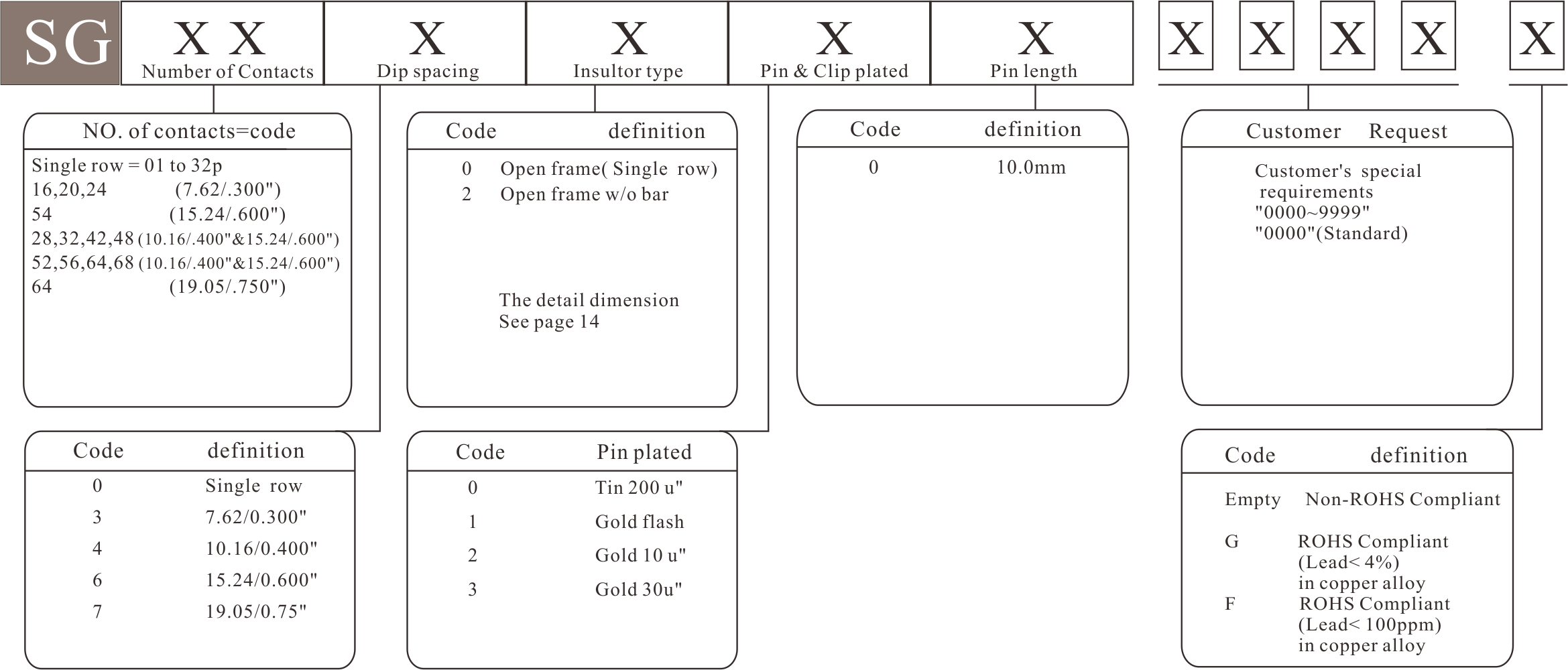

产品料号编码原则--How to order
