Materials
 Pin (outer sleeve) : Brass,machined, CuZn38Pb2
 Clip(contact 6 finger) : Beryllium copper,heat treated
 Plating(outer sleeve) : Tin plated : 2u"m/80u"nickel,5um/200u"Tin
 Gold plated: 2u"m/80u"nickel,full gold
 Plating clip(contact): 2um/80u"nickel,gold or tin plating(see TABLE-4)
 Insulator body(black) : Glass filled polyester Valox (UL94V-0) (housing)

Electrical
 Current rating : 3 Amps/contact max.
 Contact resistance : ≦4mΩ /contact
 Insulation resistance : ≧1000MΩ at V=100V
 Operating voltage : 60 AC/DC

Mechanical
 Average insertion force with steel pin of φ0.43mm/0.017": < 250g
 Average withdrawal force with steel pin of φ0.43mm/0.017": >50g
 Mechanical life : min.200
 Operating temperature : Gold plated :-55℃ to +125℃,
 (Continuous) -67℉ to +257℉
 Tin plated : -40℃ to +105℃

Application
 Solderability (IEC 60068-2-54 Ta) :245℃±3℃, 5s
 Resistance to soldering heat : (IEC 68-2-20 Tb) :260℃, 5s Max

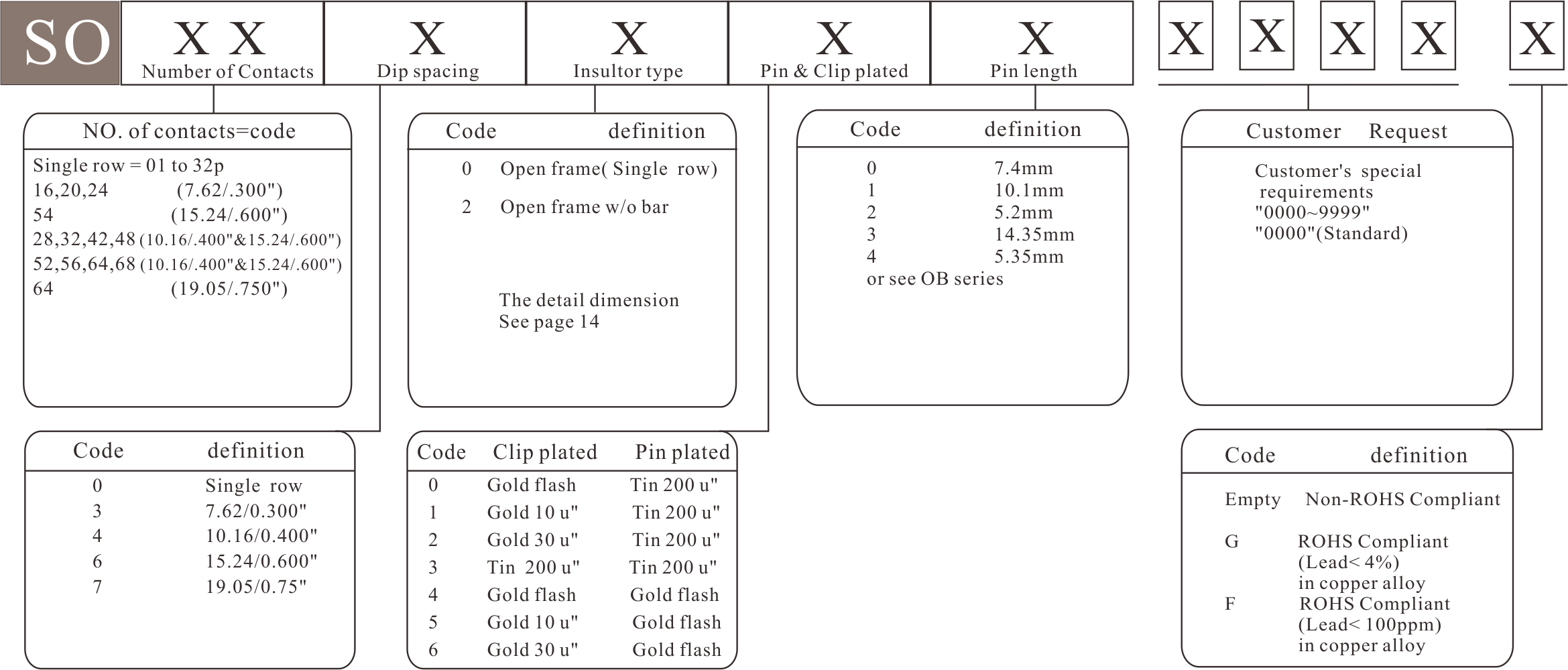

产品料号编码原则--How to order
