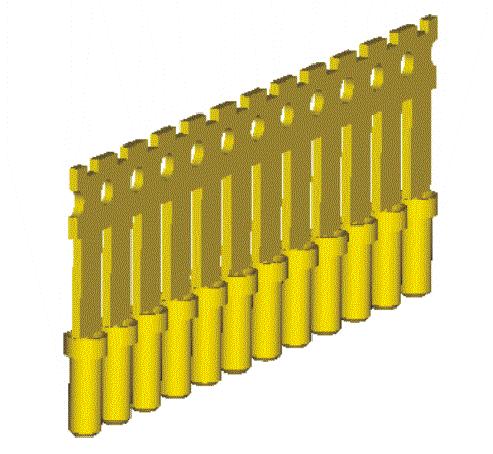

ST Series
| Product description | |
|---|---|
| : | ST Series |
| : | 2.54 |
| : | 01-50 |
| : | STxx0xxAxxxxG |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Carrier : Brass Pin (outer sleeve) : Brass, machined, CuZn38Pb2 Clip(contact 4/6 finger) : Beryllium copper ,heat treated or PHBZ Plating(carrier) : Cu40~80u",Ni80~100u" Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin Plating clip(contact): 2um/80u"nickel,gold or tin plating
Electrical
Current rating : 3 Amps/contact max. Contact resistance : ≦4mΩ /contact
Mechanical
Operating temperature : Gold plated: -55℃ to +125℃ (Continuous) -67℉ to +105℉
Tin plated: -40℃ to +105℃
Mechanical life : min.200

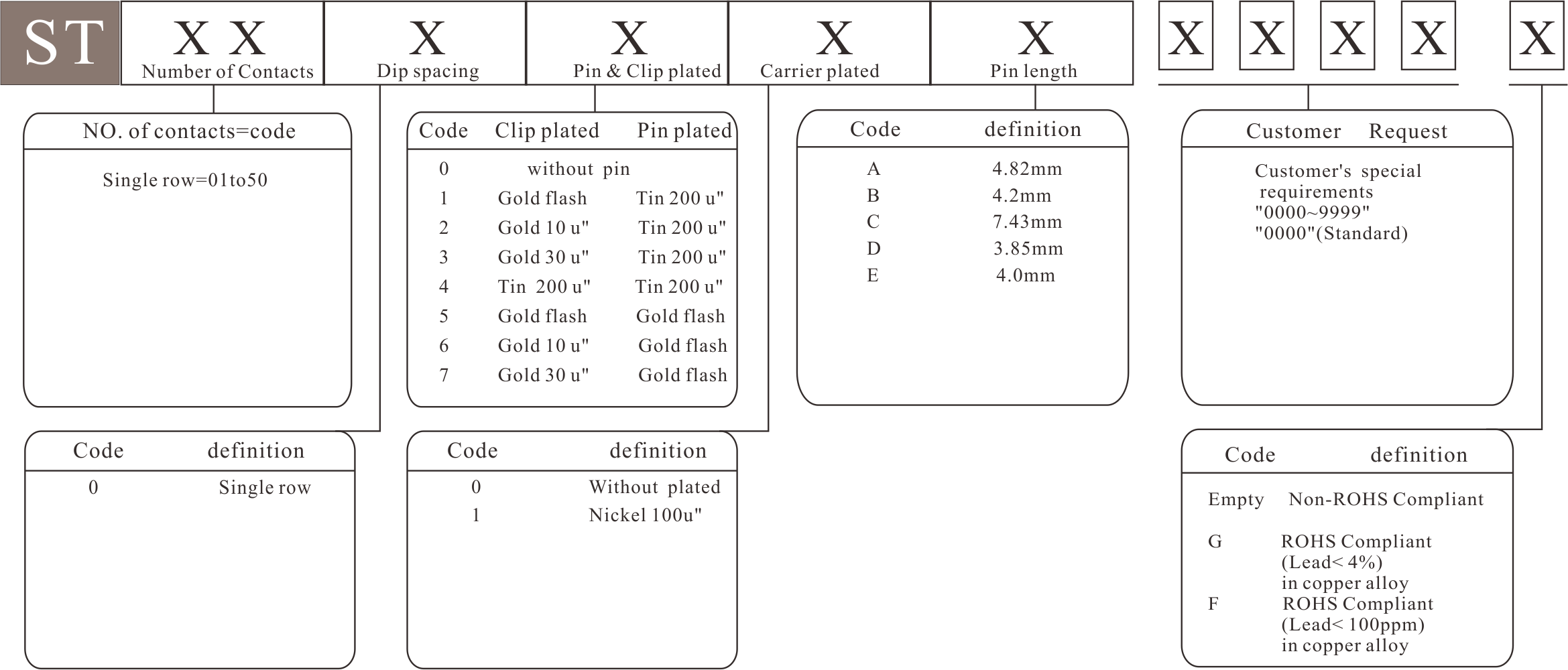

产品料号编码原则--How to order
