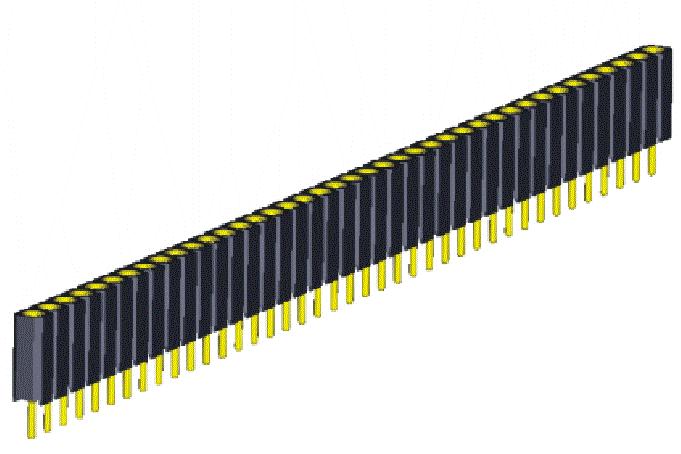

SU Single row
| Product description | |
|---|---|
| : | SU Single row |
| : | 2.54 |
| : | 01-40 |
| : | SUxx00x0xxxxG |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Clip(contact 6 finger): Beryllium copper,heat treated or PHBZ Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin Plating(contact) : 2um/80u"nickel,gold or Tin plating Insulator body(housing) : PPS. UL 94V-0
Electrical
Current rating : 3 Amps/contact max. Current resistance : ≤4mΩ /contact Insulation resistance : ≥10000MΩ at 500VAC Rated voltage : 100VRMS /150VDC
Mechanical
Operating temperature : Gold plated: -55℃ to +125℃ (Continuous) Tin plated: -40℃ to +105℃ Average insertion force: <140g With steel pin of φ0.66mm or SQ 0.64mm Average withdrawal force: >25g With steel pin of φ0.66mm or SQ 0.64mm Mechanical life: min.200 Compliant pin for solderless mount into P.C.B Plated-thru holes: φ1.0mm+0.05/-0.00mm

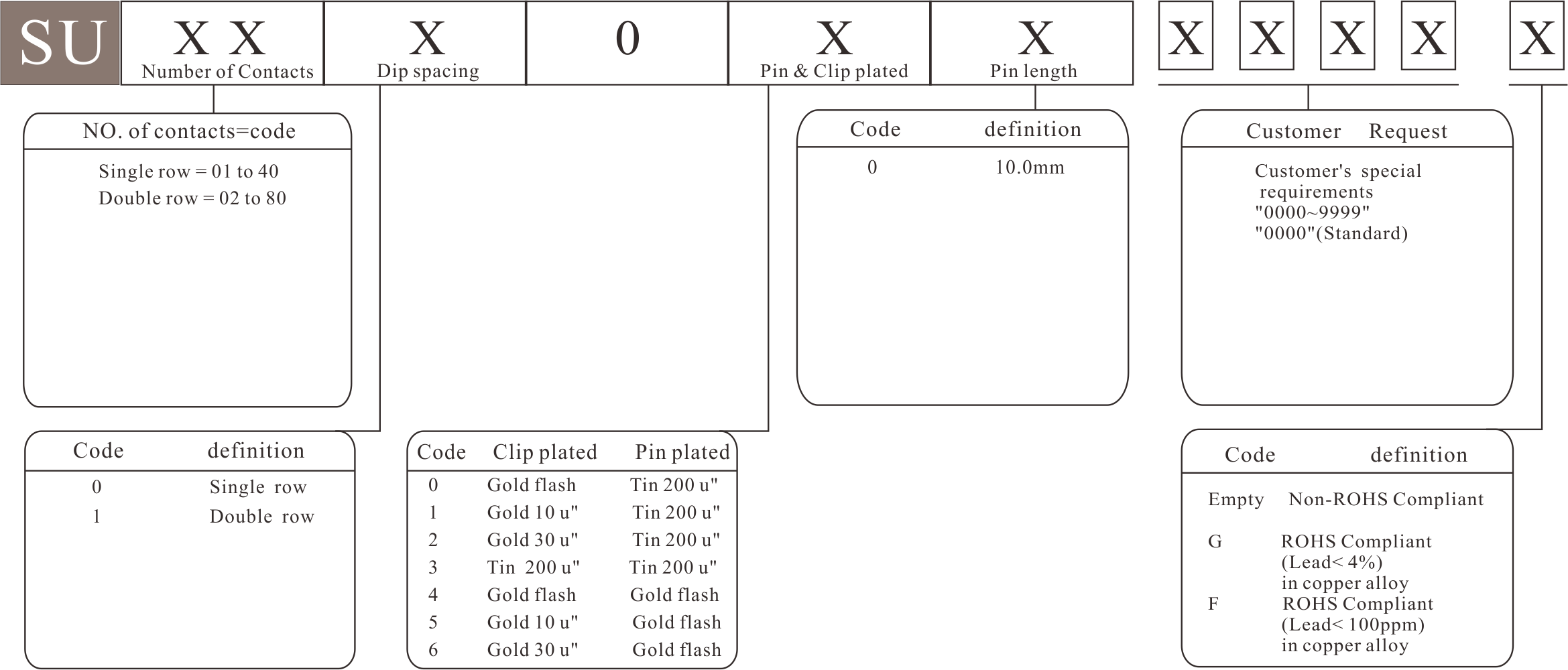

产品料号编码原则--How to order
