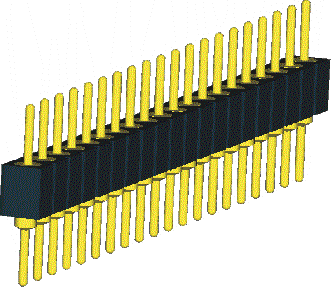

S6 Single row
| Product description | |
|---|---|
| : | S6 Single row |
| : | 2.0 |
| : | 01-64 |
| : | S6xx00x00000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin Gold plated: 2um/80u"nickel,Full gold flash Insulator body(housing) : PPS. UL94V-0
Electrical
Current rating : 3 Amps/contact max. Insulation resistance : ≧ 10000MΩ at 500VAC Rated voltage : 100VRMS /150VDC
Mechanical
Operating temperature : Gold plated: -55℃ to +125℃
(Continuous) -67℉ to +105℉
Tin plated: -40℃ to +105℃
Environmental data
Solderability (IEC 60068-2-20. Ta) : 235℃ , 2s
Resistance to soldering heat (IEC 60068-2-20. Tb) :
-Through hole mount components : 260℃ , 10s

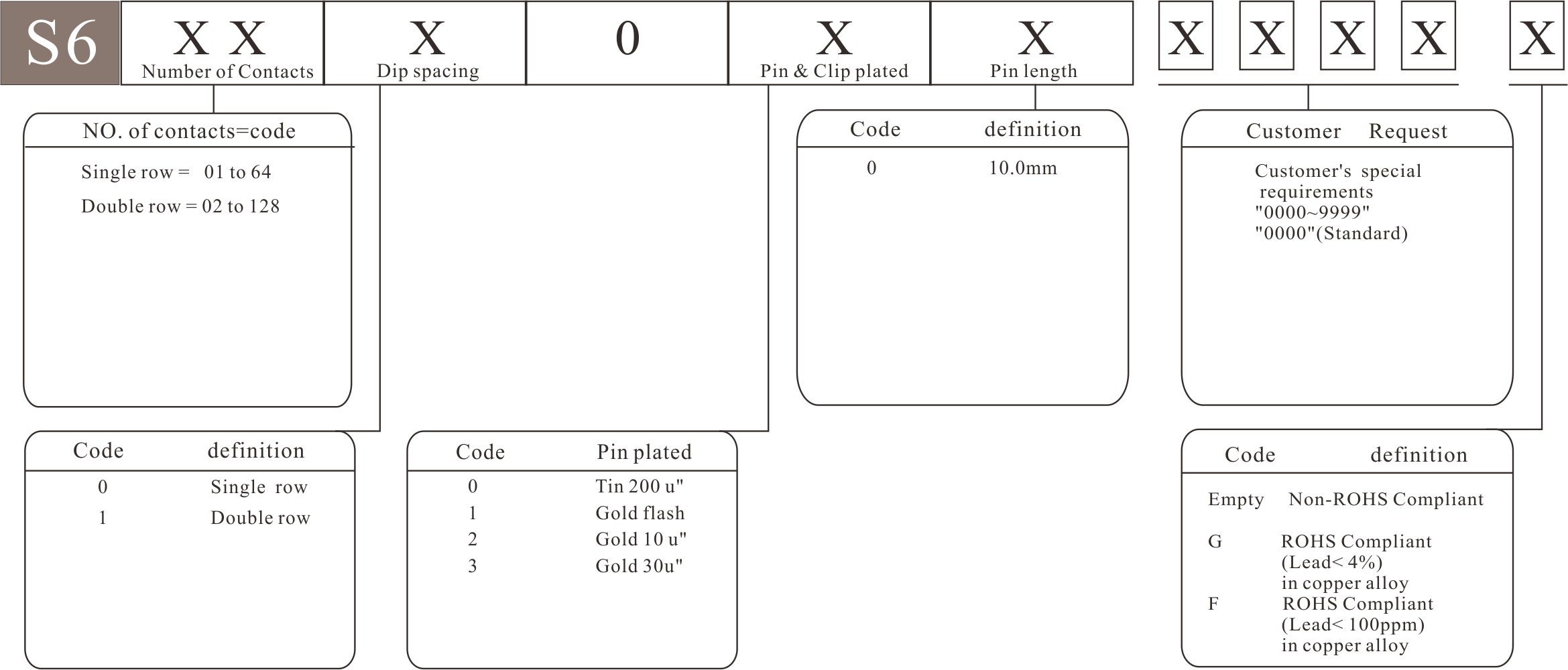

产品料号编码原则--How to order
