OE
| Product description | |
|---|---|
| : | OE |
| : | / |
| : | / |
| : | OE0000x00000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials

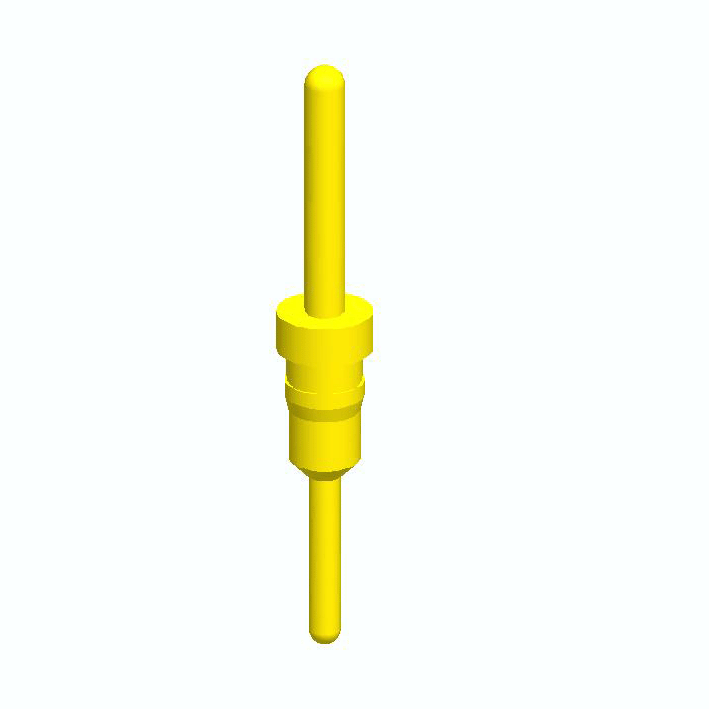

Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated : 2um/80u"nickel,Full gold flash
Electrical
Current rating : 3 Amps/contact max.
Operationg voltage : 60V AC/DC

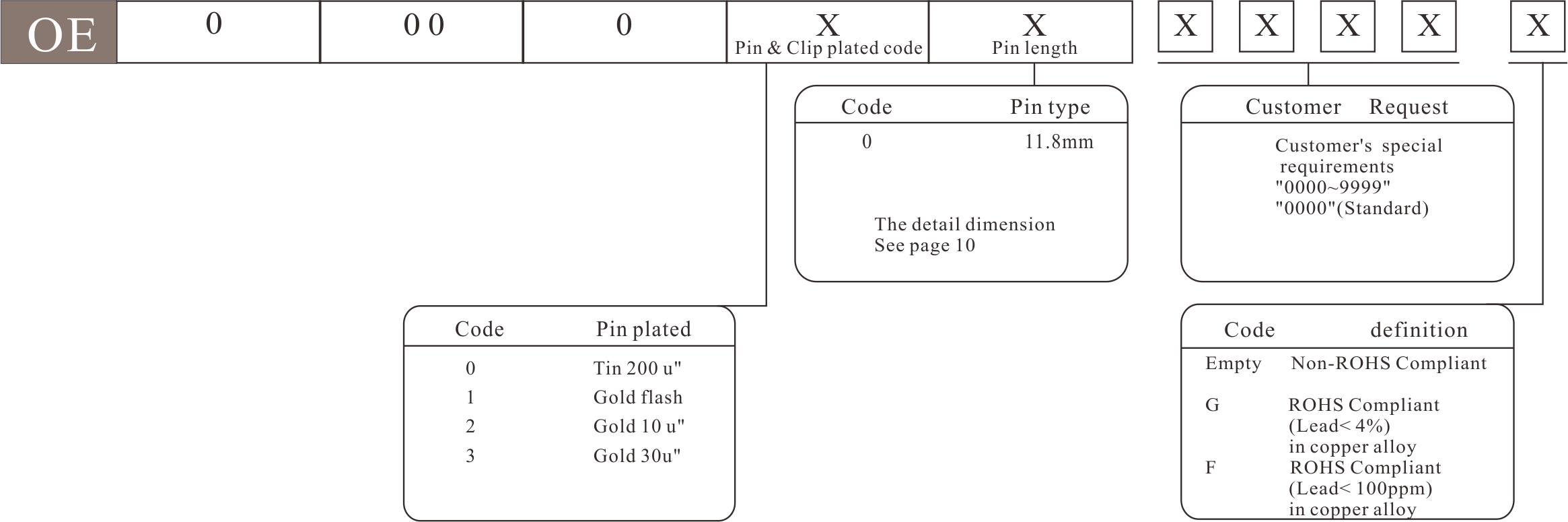

产品料号编码原则--How to order
