OD

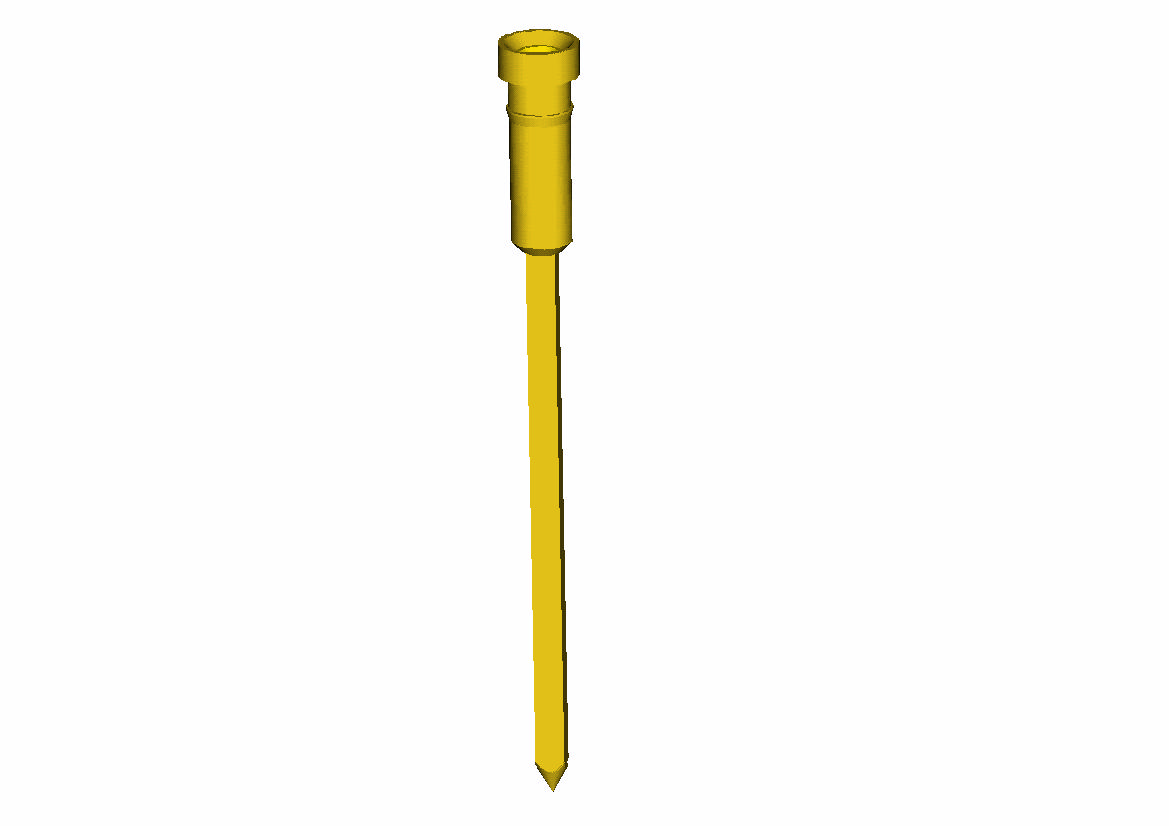

| Product description | |
|---|---|
| : | OD |
| : | / |
| : | / |
| : | OD4000x20000G |
|
Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales. |
|
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Clip(contact 4/6 finger): Beryllium copper,heat treated Plating(outer sleeve) : Tin plated : 2u"m/80u"nickel,5um/200u"Tin Gold plated : 2um/80u"nickel,Full gold flash Plating(contact) : 2um/80u"nickel,gold or Tin plating(See TABLE)
Electrical
Current rating : 3 Amps/contact max. Current resistance : <4mΩ /contact.
Mechanical
Average insertion force with steel pin of φ0.43mm/0.017": 4-finger ≦250g.6-finger ≦80g Average withdrawal force with steel pin of φ0.43mm/0.017": 4-finger ≦50g.6-finger ≦15g Mechanical life: min.200

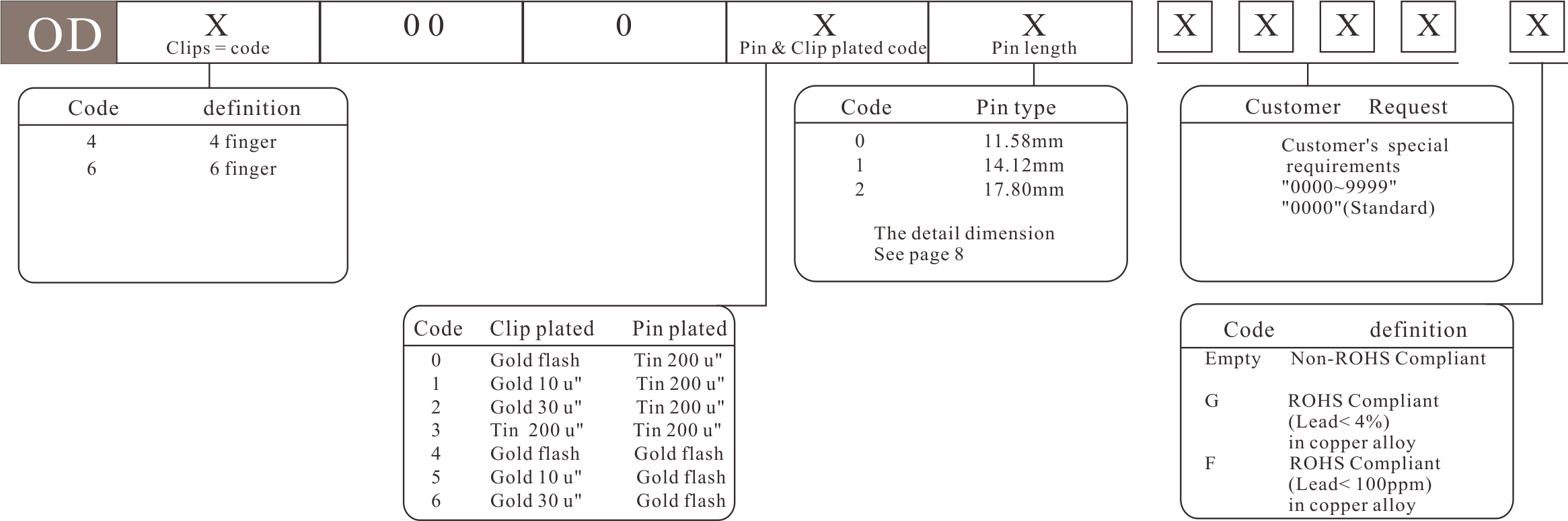

产品料号编码原则--How to order
