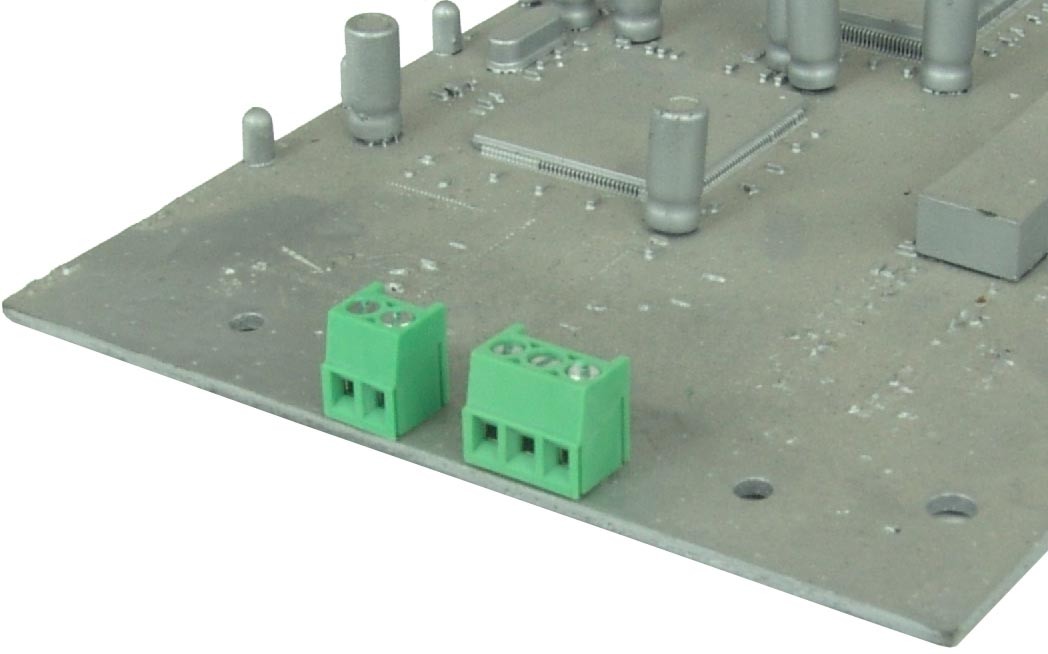

ER-180D

Product description
: ER-180D
: 3.5
: 2P-3P
: ERxx01500000G

Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales.

电气性能-Electrical

安规类别/Safety category:cULus
额定电压/Voltage rating:300V
额定电流/Current rating:10A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):16-24
多芯线经（AWG）/Stranded wire(AWG):16-24
最大锁紧扭力/Torque:1.7 Lb-In
螺丝规格/Screw:M2
剥线长度/Wire strip length:5~6mm
耐电压值（1分钟）/Withstanding Voltage:1.6KV
安全认证/Safety Approval:(cULus)pending
操作温度/Operating temperature:-40℃ to +115℃
焊锡温度/Soldering temperature:260℃±5℃/5 Sec
