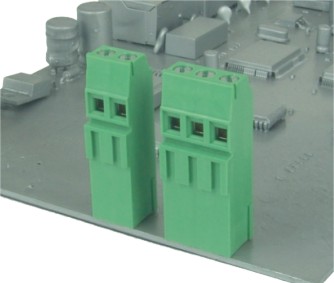

YF

Product description
: YF
: 5.0
: 2P,3P
: YFxx01500000G

Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales.

电气性能-Electrical
安规类别/Safety category:UL
额定电压/Voltage rating:300V
额定电流/Current rating:10A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):12-24
多芯线经（AWG）/Stranded wire(AWG):12-24
最大锁紧扭力/Torque:3.5Lb-In
螺丝规格/Screw:M2.5
剥线长度/Wire strip length:6~7mm
耐电压值（1分钟）/Withstanding Voltage:1.6KV
安全认证/Safety Approval:
操作温度/Operating temperature:-40℃ to +115℃
焊锡温度/Soldering temperature:260℃±5℃ /5Sec




产品料号编码原则-How to order

YF
XX
Poles		X
Pitch		X
Screw&Clamp		X
Color		X
Tail length
X
X
X
X

X

End stackable
02 2 contacts
03 3 contacts
… …
24 24 contacts
(pitch5.0mm)
12 12 contacts
(pitch10.0mm)

0 5.00/.197"
1 10.00/.394"
0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp

0 Black
5 Green (RAL 6018/T)
6 Blue
8 Grey (RAL7035/D) C Green (RAL 6018/U)

0 3.5mm
000 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper A lloy

H RoHS compliant
(lead<1000ppm)
In copper A lloy
