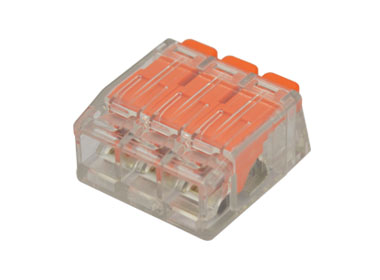

N3

Product description
: N3
: 5.6mm
: 2p, 3p, 5p
: N3xx00300000G

Please refer to the pdf file. The website drawing is for reference only. For details, please contact sales.

电气性能-Electrical

安规类别/Safety category:UL486C
额定电压/Voltage rating:600V
额定电流/Current rating:35A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):12-24
多芯线经（AWG）/Stranded wire(AWG):12-24
剥线长度/Wire strip length:11~12mm
耐电压值（1分钟）/Withstanding Voltage:3.4 KV
安全认证/Safety Approval:cULus
操作温度/Operating temperature:-40℃ to +85℃
