Materials
 Pin (outer sleeve) : Brass,machined, CuZn38Pb2
 Plating : Tin plated : 2um/80u"nickel,5um/200u"Tin
 Gold plated: 2um/80u"nickel,full gold
 Insulator body(black): Glass filled polyester UL94V-0

Electrical
 Current rating : 3 Amps/contact max.
 Insulation resistance : ≧10000MΩ at 500VAC
 Rated voltage : 100VRMS / 150VDC

 Mechanical
 Operating temperature : Gold plated: -55℃ to +125℃
 (Continuous) -67℉ to +257℉
 Tin plated: -40℃ to +105℃

Application
 1.The male header contacts are designed for "Sandwich application" because
 The pin of φ0.5mm/0.050" can be plugged into a standard IC-contact.
 2.3 different heights are available.
 3.Low profile type.
 4.Side and end stackable.
 5.Twist free construction.

Environmental data
 Solderability (IEC 60068-2-54. Ta) :245℃±3℃, 5s
 Resistance to soldering heat (IEC 60068-2-20. Tb) :
 -Through hole mount components : 260℃, 10s

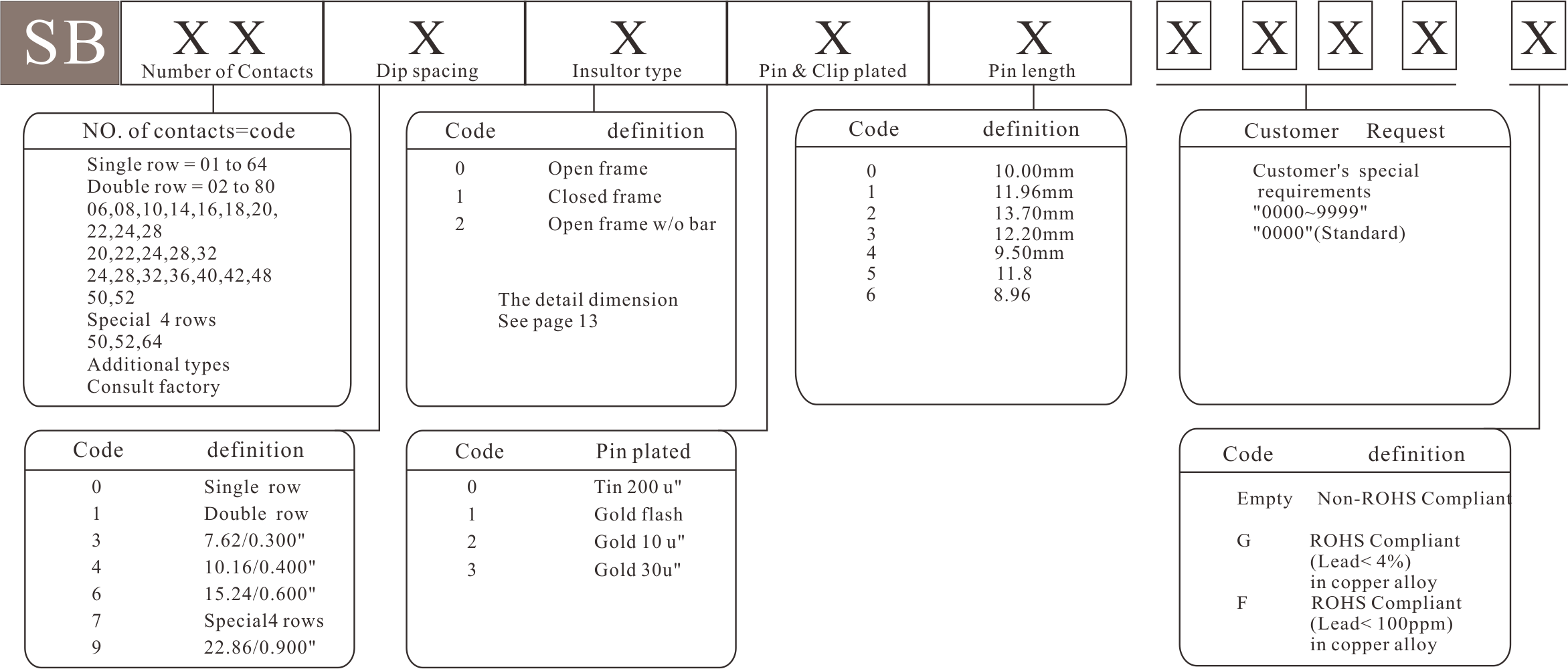

产品料号编码原则--How to order
